Process Controller with touch screen, 7“ TFT-Colour screen in resistive touch technology
Robust stainless steel housing according to DIN standard / industry standard
Durable membrane keyboard
Easy-to-use, systematic configuration settings
Degree of protection: IP65 (from the front)
Several different interfaces (LAN, Mini-USB, USB-Host)
Freely programmable logic with AND/OR links and timers
Language can be changed
Flexible steam and flap times, turntable control, night-time preheating function with readiness display, system status messages
Entering of bake and steam time
Different process monitoring features (burner, thermal fuse, exhaust flap etc.)
Easy transmission of programs and settings as well as firmware updates via USB
Number of programs and steps can be customised for your needs
16 potential free relay outputs
12 galvanically insulated digital inputs
6 galvanically insulated analogue inputs
(4x Pt100, 2x universal)
176 x 194 mm

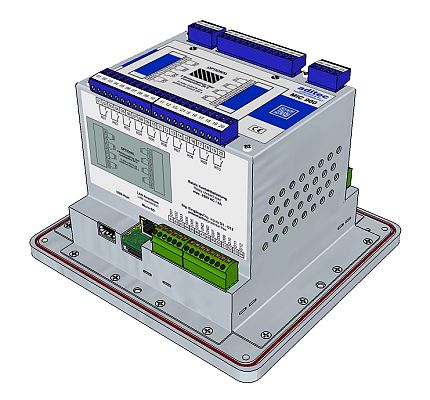

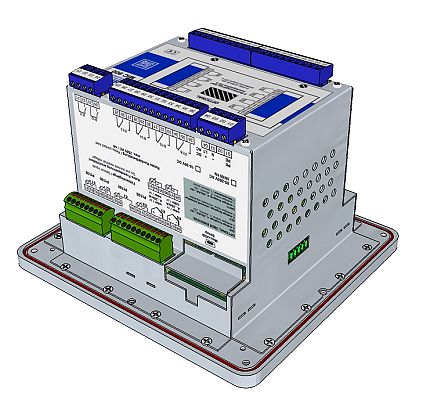

^{Click for 3D!}

Data sheet (PDF 793kB)

User manual (PDF 3,1MB)
