Screw-in sensor/piercing sensor Pt 100

With FEP (silicone) cable

• Range of application: -50°C up to +180°C
• Watertight and steam resistant
• High mechanical cohesion
• Protective sleeve/needle made of stainless steel 1.4571
• For use in the food industry
• All models are extremely impact-resistant

With  PTFE (Teflon) cable

• Range of application: -50°C up to +250°C
• Watertight and steam resistant
• High mechanical cohesion
• Protective sleeve/needle made of stainless steel 1.4571
• Internal wire mesh (protection)
• For use in the food industry
• Handles and cables are oil and acid resistant
• All models are extremely impact-resistant
• Not suitable for autoclaves
• For use in autoclaves, please see our special design:
  Watertight and steam resistant, pressure resistant up to 3 bar. Don't hesitate to ask us!

• Sheath tube/sensor made of stainless steel 1.4571
• Water tight design, shielded, 3-wire (optional 4-wire, etc.)

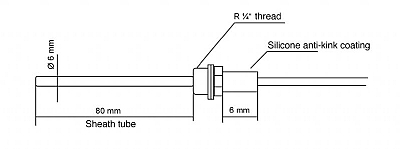

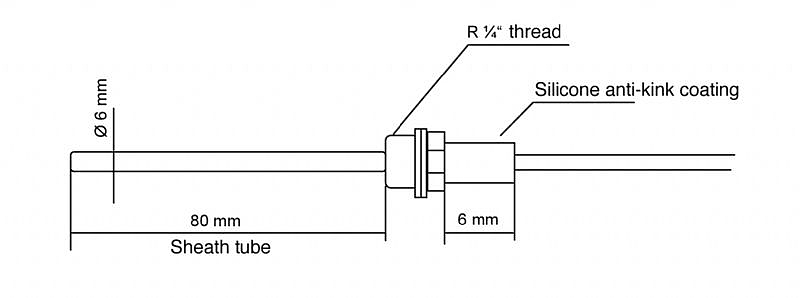

• Standard dimensions sensor part:
  R ¼ thread, sensor part 80mm x 6mmØ
• Length, diameter and thread of the sensor part vary also. Please specify sensor dimensions when you order!

• Protective sleeve/needle made of stainless steel 1.4571
• Water tight design, shielded, 3-wire (optional 4-wire)

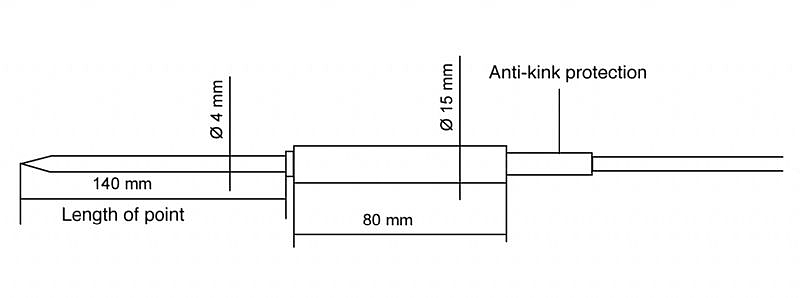

• Standard needle:
  L 140 mm x 4 mm Ø
• Length & diameter of the needle vary also. Please specify needle dimensions when you order!

• Protective sleeve/needle made of stainless steel 1.4571
• Water tight design, shielded, 3-wire (optional 4-wire)

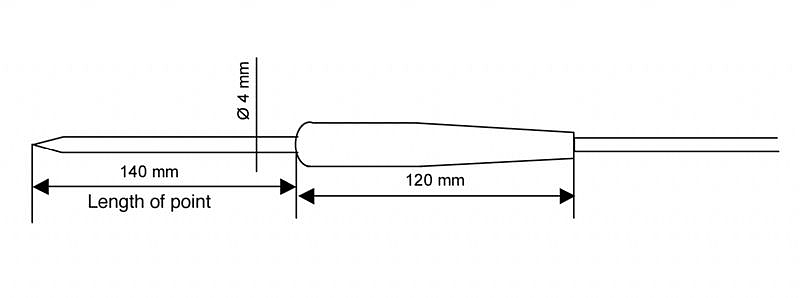

• Standard needle
  140mm length of point, 4mmØ
• Length & diameter of the needle vary also. Please specify needle dimensions when you order!
